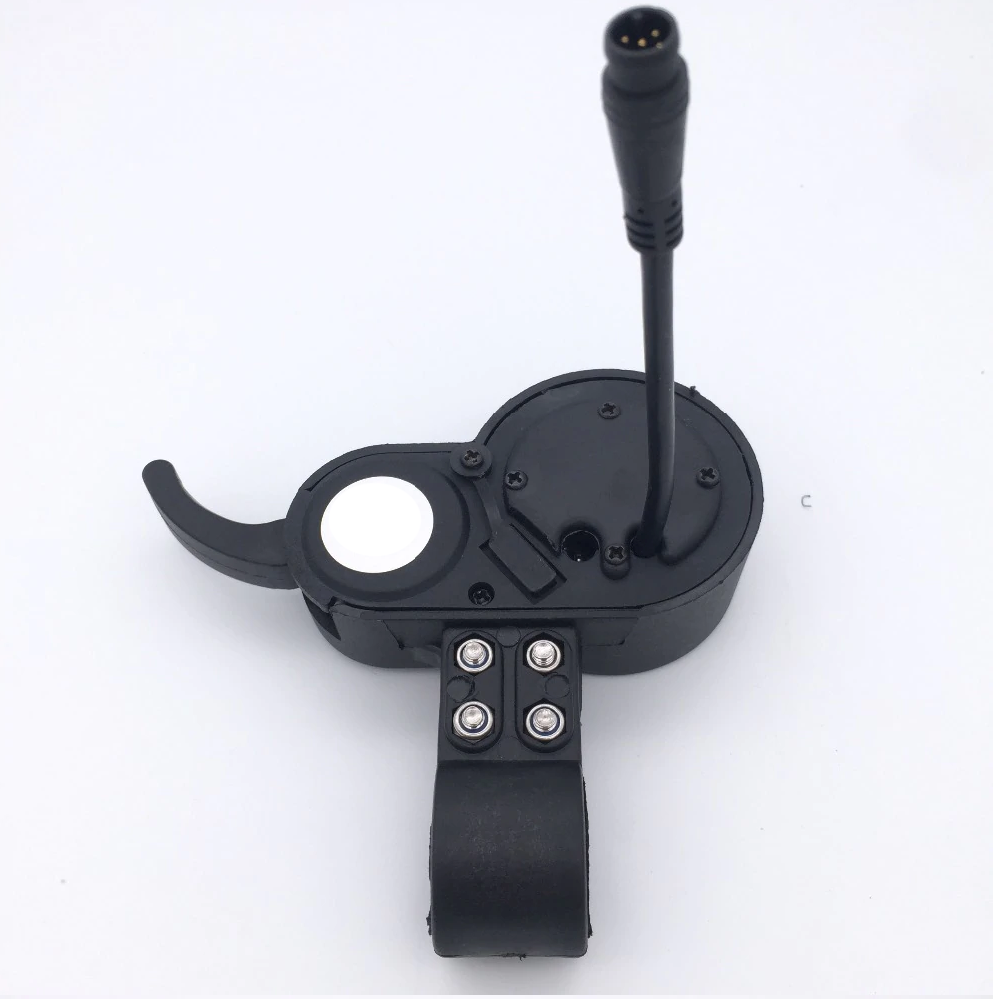

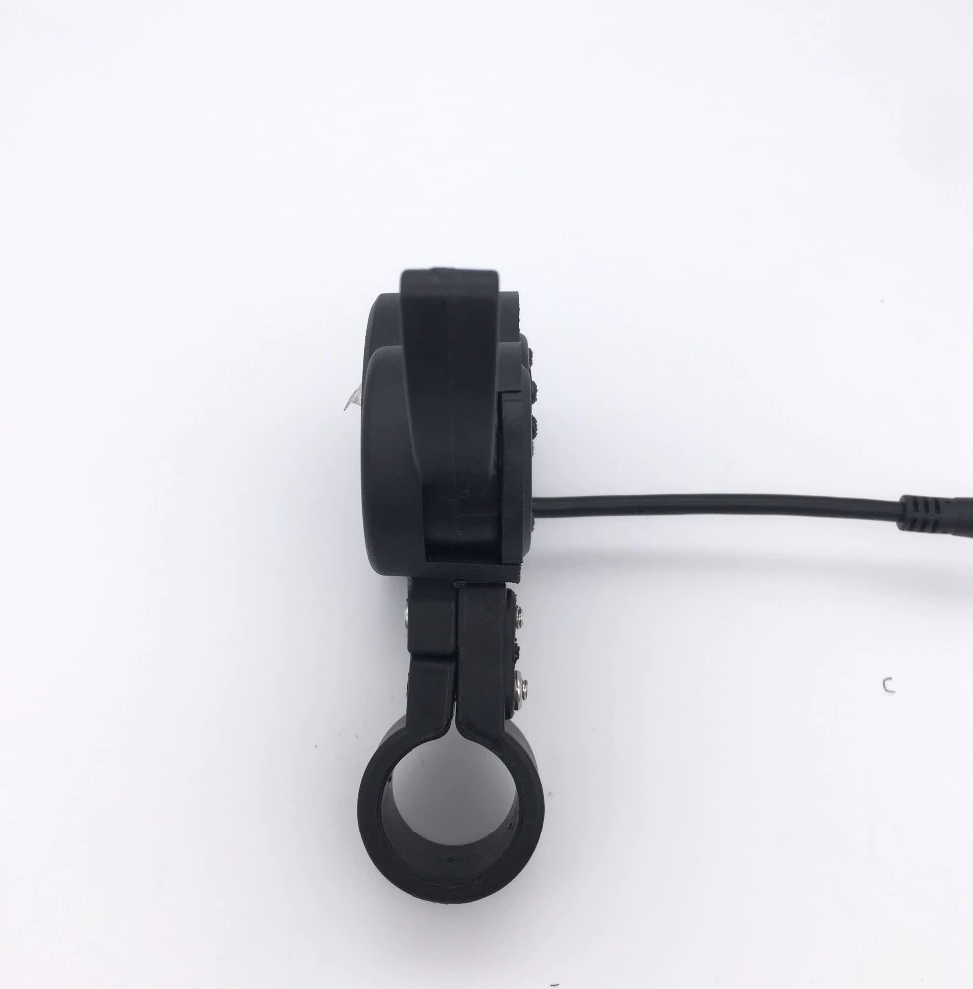

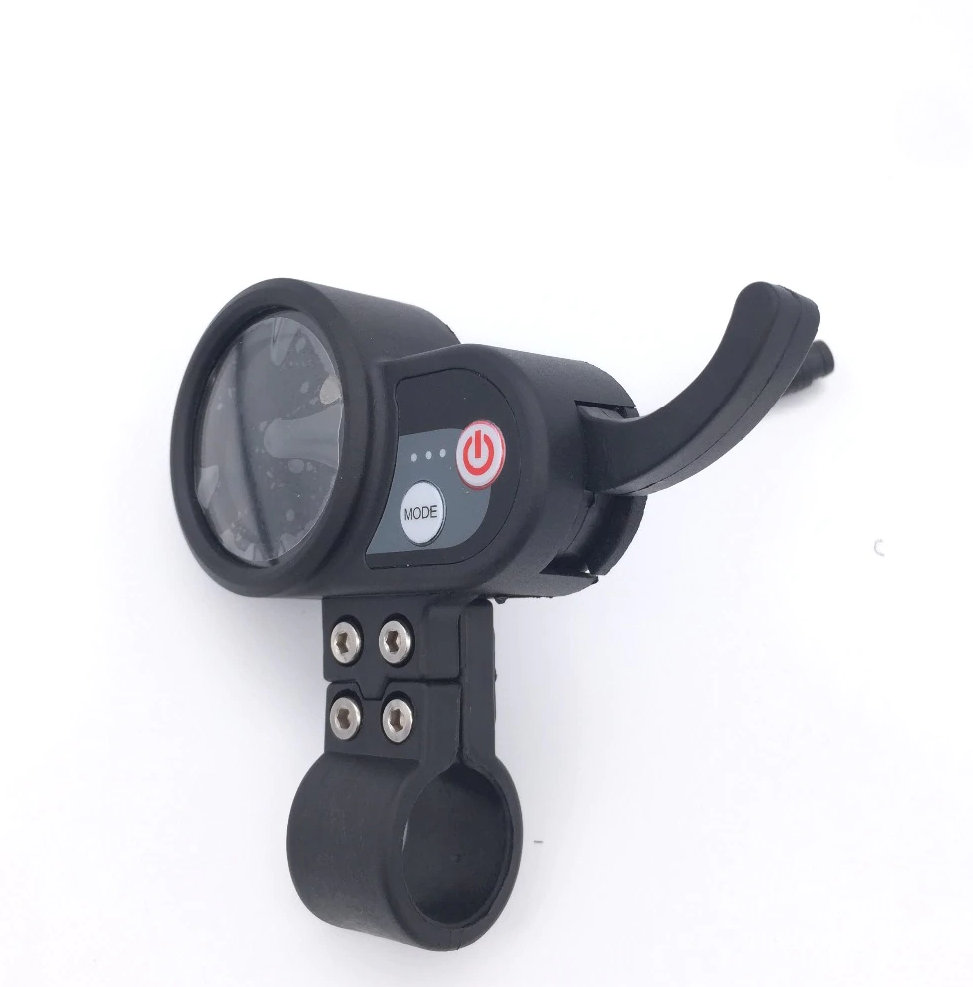

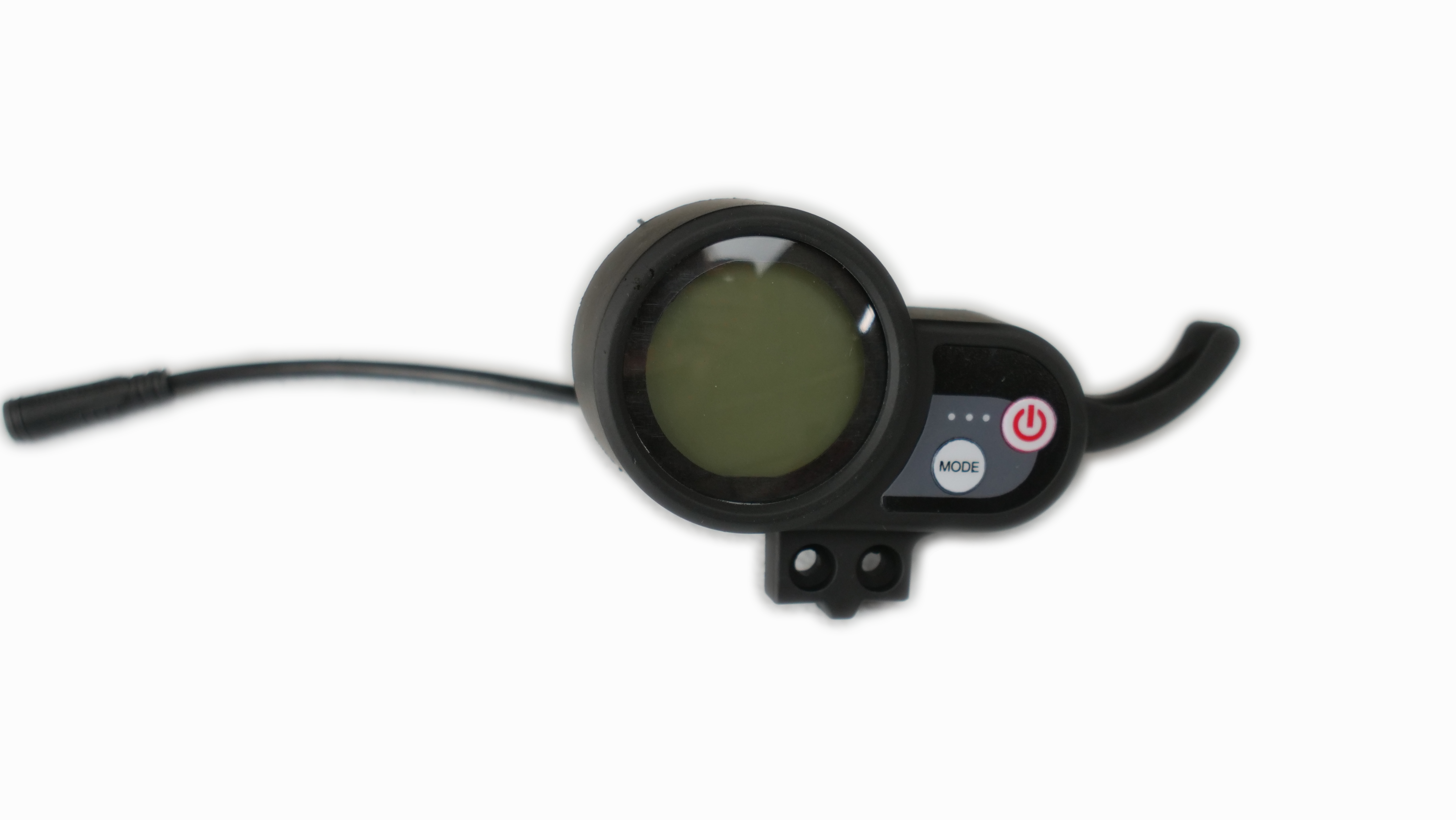

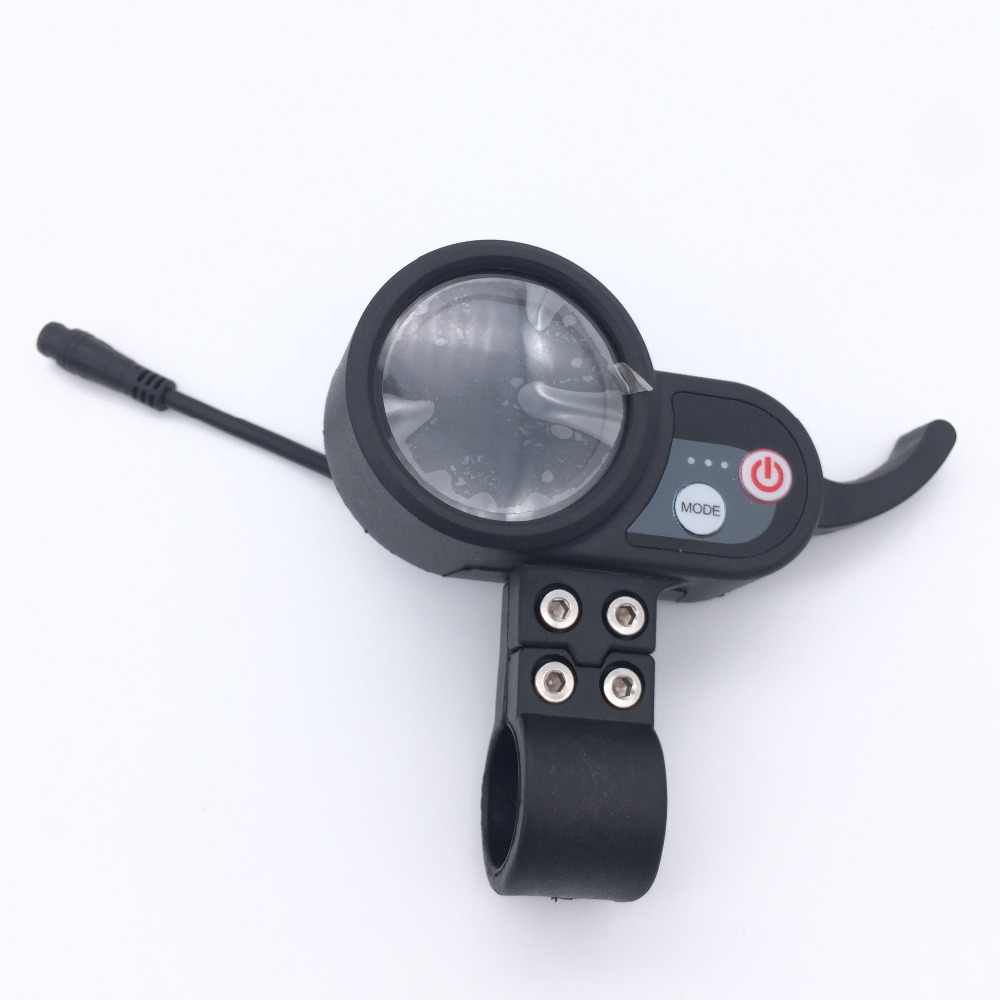

This LCD Display is the latest throttle for the original EMOVE Cruiser Electric Scooter
Compatible with the latest EMOVE Cruiser only. This is the plug and play module

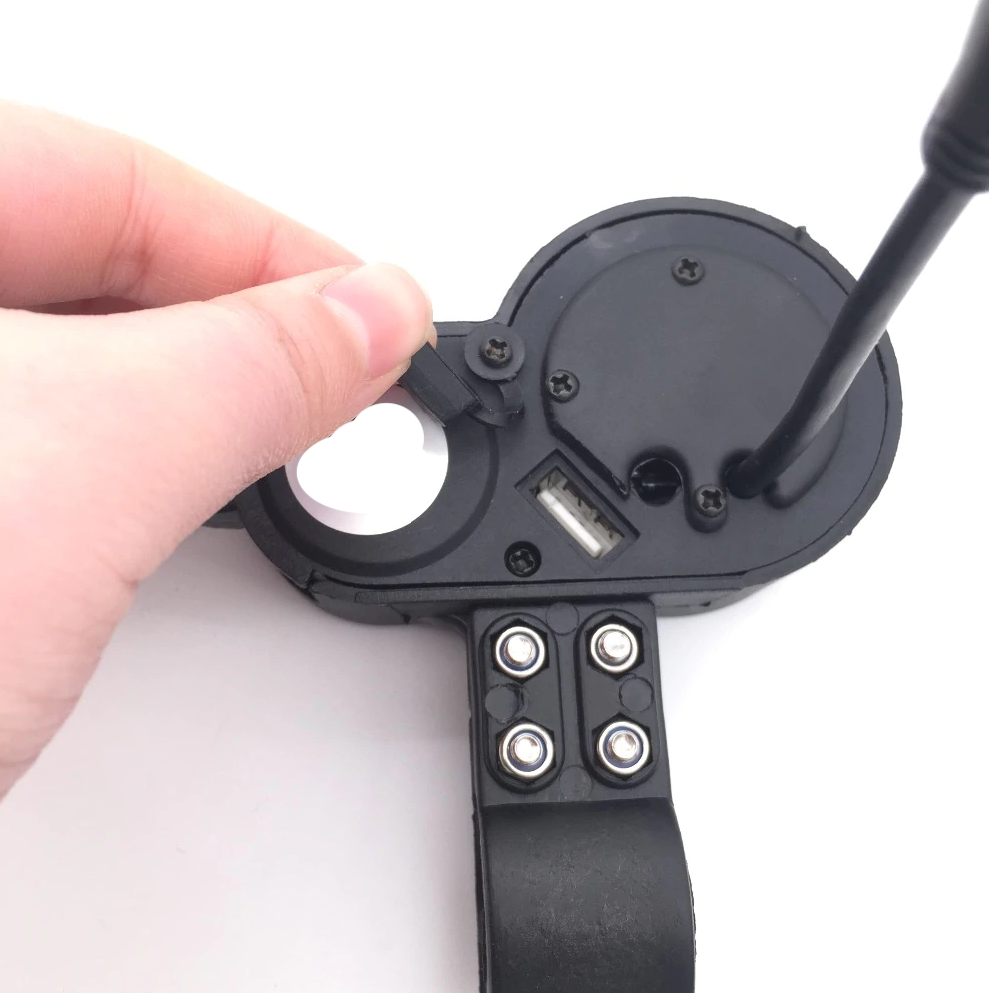

To switch out the LCD Throttle, simple remove the 4 mini screws at the back, unplug the old throttle with your new throttle. Calibrate the throttle according to your scooters' voltage.
P1 - This will usually be fixed by default, there shouldn't be a need to change this. Shows the voltage of the battery (Under-voltage point of the battery will be displayed) E.g. Under voltage point will be 31.5V if you're seeing 315 on the display.
430 - 52V
Press MODE to increase by 0.5V, Press POWER to decrease by 0.5V
- LCD Display throttle only
- Does not include the bottom throttle holder or screws
